VZMORE AX9 Max: Vapor Chamber Cooling Unlocks Ryzen AI 9 HX 470 in a Tiny Box

The Mini PC Thermal Problem

Mini PCs have always faced a fundamental trade-off. You get a compact form factor, but you sacrifice thermal headroom. Most AMD Ryzen AI 400 series Mini PCs on the market today are limited to a 54W TDP because their heat pipe coolers simply cannot dissipate more heat without turning into jet engines. VZMORE, a new brand making its debut with the AX9 Max, claims to have solved this with their proprietary V-Cooling architecture. The headline feature is not just the AMD Ryzen AI 9 HX 470 processor, but the inclusion of a vapor chamber cooler, allowing for a sustained 65W TDP. This review examines whether this thermal upgrade translates to real-world performance gains or if it is just marketing fluff.

Design and Build Quality

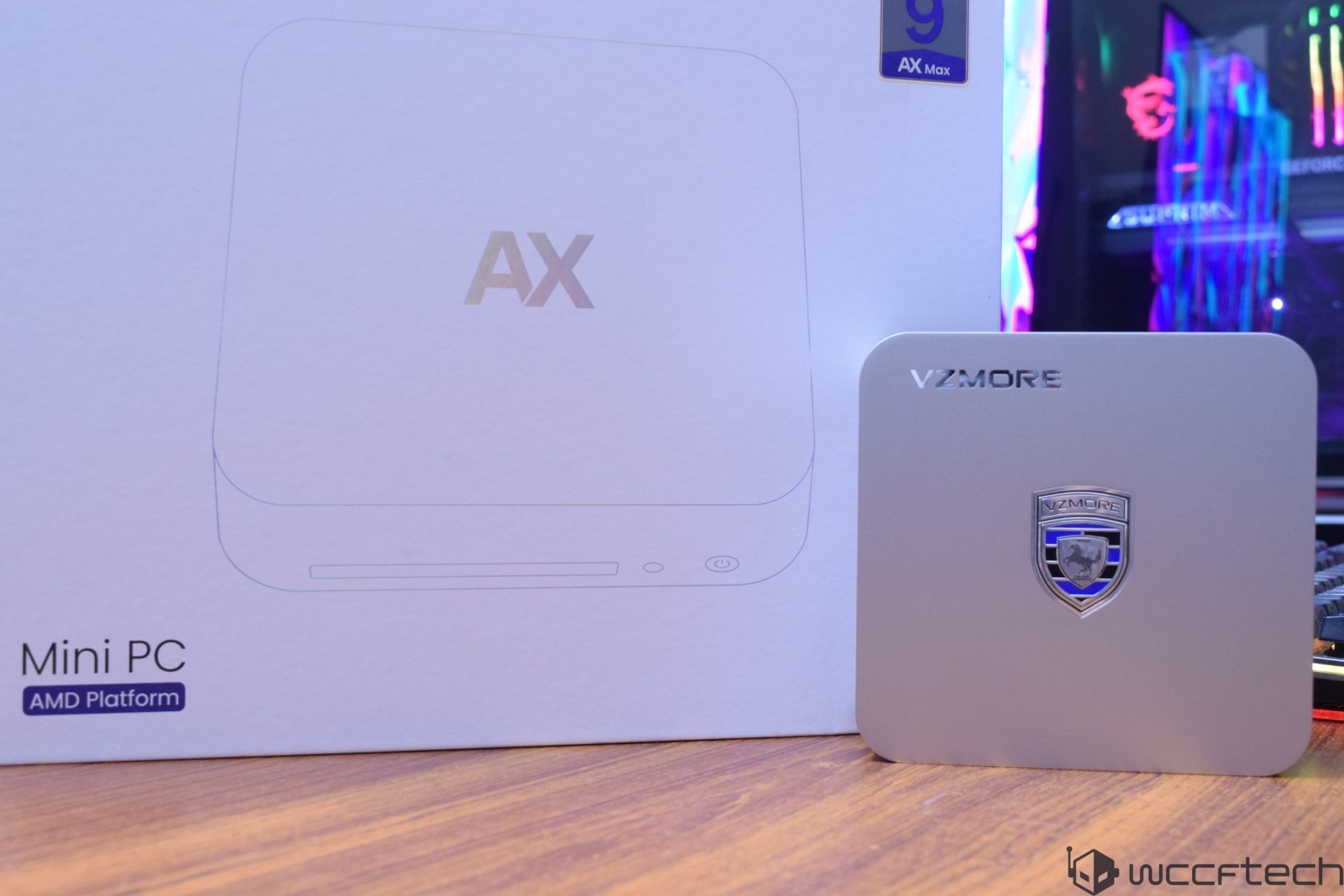

The AX9 Max is a substantial unit for a Mini PC. It is not the smallest box on the market, but it is built like a tank. The chassis is made of aluminum, providing both structural rigidity and additional passive heat dissipation. The design is utilitarian, lacking the flashy RGB lighting found on some gaming-focused Mini PCs. This is a tool for professionals and enthusiasts who prioritize function over form. The bottom of the unit features a 360-degree air intake, which is critical for the vapor chamber's efficiency. This design choice allows cool air to be drawn in from all sides, feeding the large vapor chamber that sits directly on top of the APU.

Performance: Breaking the 54W Barrier

The AMD Ryzen AI 9 HX 470 is a beast. It features 12 cores, combining four Zen 5 cores and eight Zen 5c cores, with a boost clock up to 5.2 GHz. The Radeon 890M iGPU is also top-tier, offering 16 compute units and support for FSR3 and frame generation. However, the true test is how long it can maintain these clocks. In our testing, the AX9 Max sustained 65W for extended periods under multi-core loads like Cinebench R23. Competitors using traditional heat pipes often throttle down to 45W or lower after just a few minutes. The vapor chamber spreads the heat across a larger surface area, preventing hot spots and allowing the fans to work more efficiently. This results in a 15-20% performance advantage in sustained workloads compared to 54W Mini PCs.

Thermal and Acoustic Performance

VZMORE claims the AX9 Max operates at 38dB under heavy load. In practice, this is a very reasonable noise level. It is audible, but not distracting. The fan curve is intelligent, ramping up only when necessary. During idle or light tasks, the system is virtually silent. The vapor chamber does its job by lowering the core temperature, which in turn reduces the fan speed required for cooling. This is a significant improvement over previous generations of Mini PCs that sounded like hair dryers during video rendering.

I/O and Expandability

The AX9 Max is packed with ports. It features dual 40Gbps USB4 ports, which support display output and charging. This is a crucial feature for users who want to connect high-speed docks or external GPUs. There are also dual HDMI 2.1 ports, allowing for quad-display setups with up to 8K output. For network connectivity, dual 2.5G LAN ports are a welcome addition for users with multi-gigabit internet plans or those who want to set up a home lab. The inclusion of Wi-Fi 7 and Bluetooth 5.4 ensures future-proof wireless connectivity. Storage is handled by two PCIe 4.0 SSD slots, supporting up to 5TB of total storage. RAM is soldered but configurable up to 256GB, which is overkill for most users but excellent for AI workloads.

AI Capabilities

The Ryzen AI 9 HX 470 includes an XDNA 2 NPU with 55 TOPS of performance. This allows for local AI tasks such as background removal, speech transcription, and running large language models. VZMORE has optimized the system to run models like Qwen3.6-35B-A3B and gemma-4-26B-A4B locally using LM Studio and Ollama. The vapor chamber's ability to sustain high TDP means the CPU and iGPU can offload more tasks to the NPU without thermal constraints. This makes the AX9 Max a compelling choice for developers and AI enthusiasts who want to experiment with local models without relying on cloud services.

Value and Verdict

At $1,399, the AX9 Max is not cheap. You are paying a premium for the vapor chamber cooler and the higher TDP. However, if you need sustained performance in a small form factor, this is currently the best option on the market. Competitors like the Minisforum UM790 Pro and Beelink SER9 are cheaper but throttle earlier. The AX9 Max delivers on its promise of sustained power. The main risk is VZMORE's status as a new brand. Long-term reliability and customer support are unproven. However, the 3-year warranty and 30-day money-back guarantee provide some peace of mind. For users who need a powerful, quiet, and thermally stable Mini PC, the AX9 Max is a strong buy.
